Product Parameters
Item | Speci. |
PCB SMT Min thickness | T＜0.1mm |
PCB SMT Max thickness | T＞4.5mm |
PCB SMT Min Length | L≥3mm, |
PCB SMT Min Width | W≥3mm |
-PCB SMT Max Length | L ＞ 1200mm |
PCB SMT Max Width | W＞ 500mm |
Min panel size | 0.3mm*0.2mm |
Max panel size | 200mm*125mm＜SMD |
component thickness | 6.5mm＜T≤15mm |
Min pin space | 0.3mm≤Pitch＜0.4mm |
Min ball space | 0.3mm≤Pitch＜0.5mm |
PCB DIP Min thickness | T＜0.8mm |
PCB DIP Max thickness | T＞2mm |
PCB DIP Min Length | L≥50mm |
PCB DIP Min Width | W≥30mm |
PCB DIP Max Length | L≥1200mm |
PCB DIP Max Width | W≥500mm |
Inter package | Vacuum/ Antistatic Bag |
Outer package | Carton |
SMT capacity | Four Million point/day |

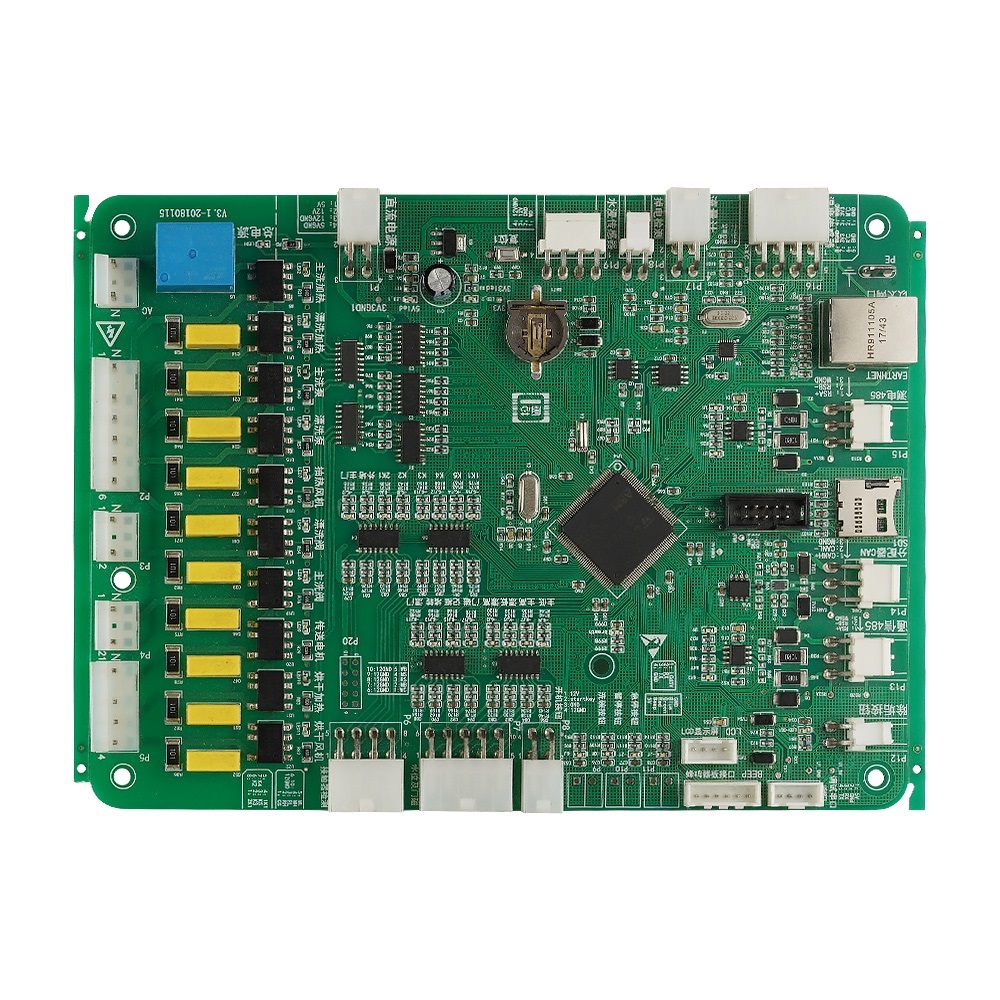

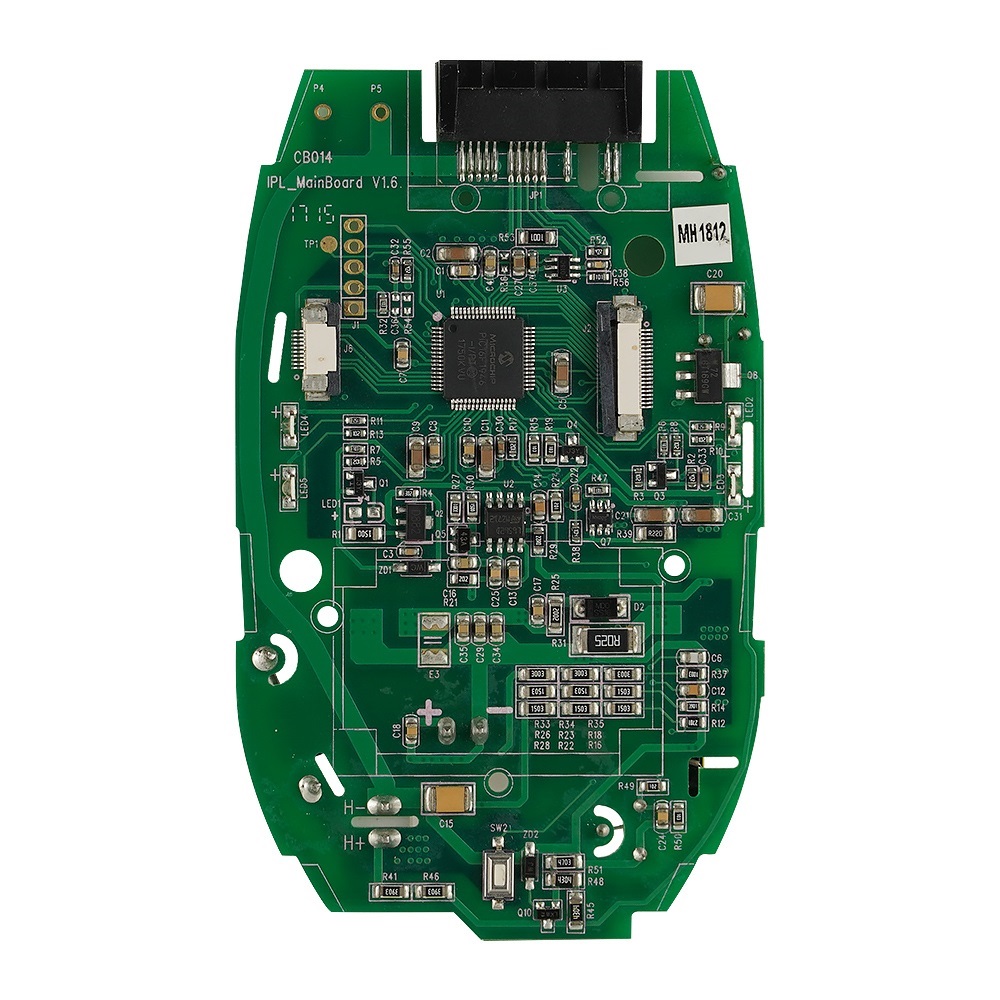

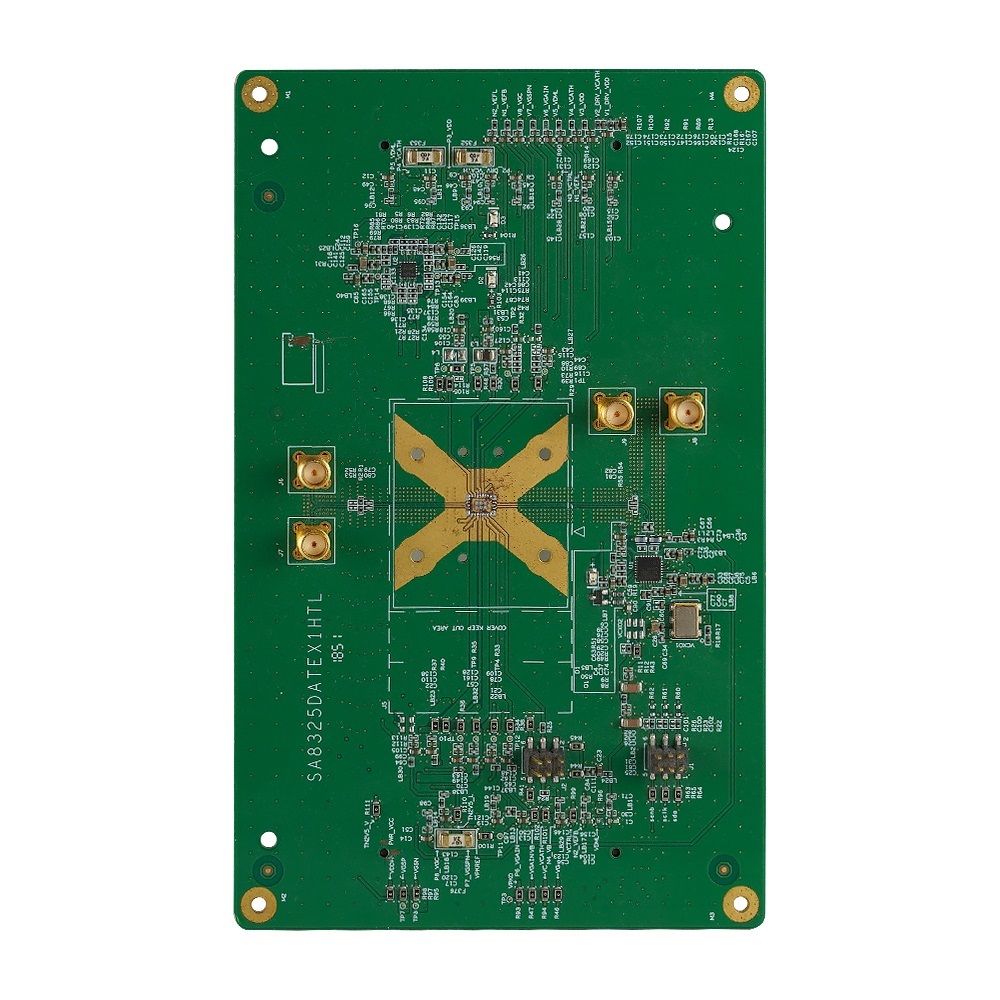

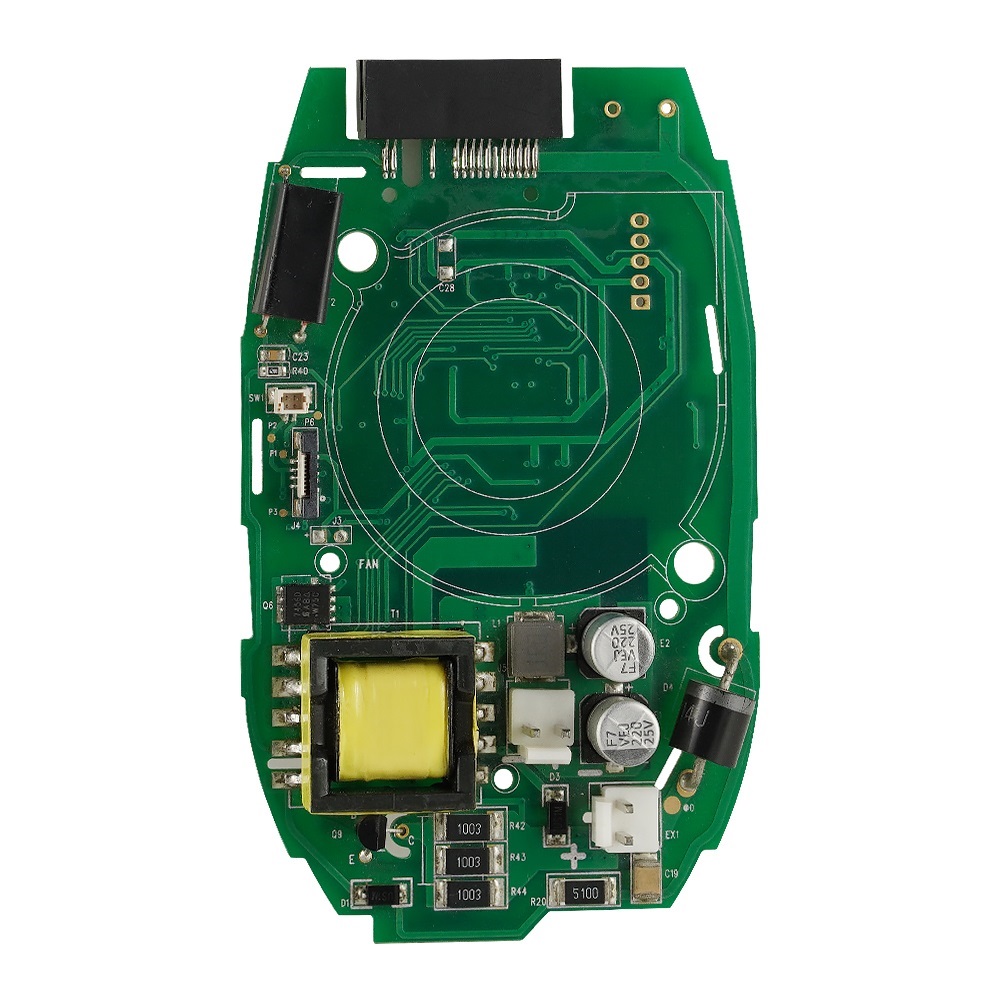

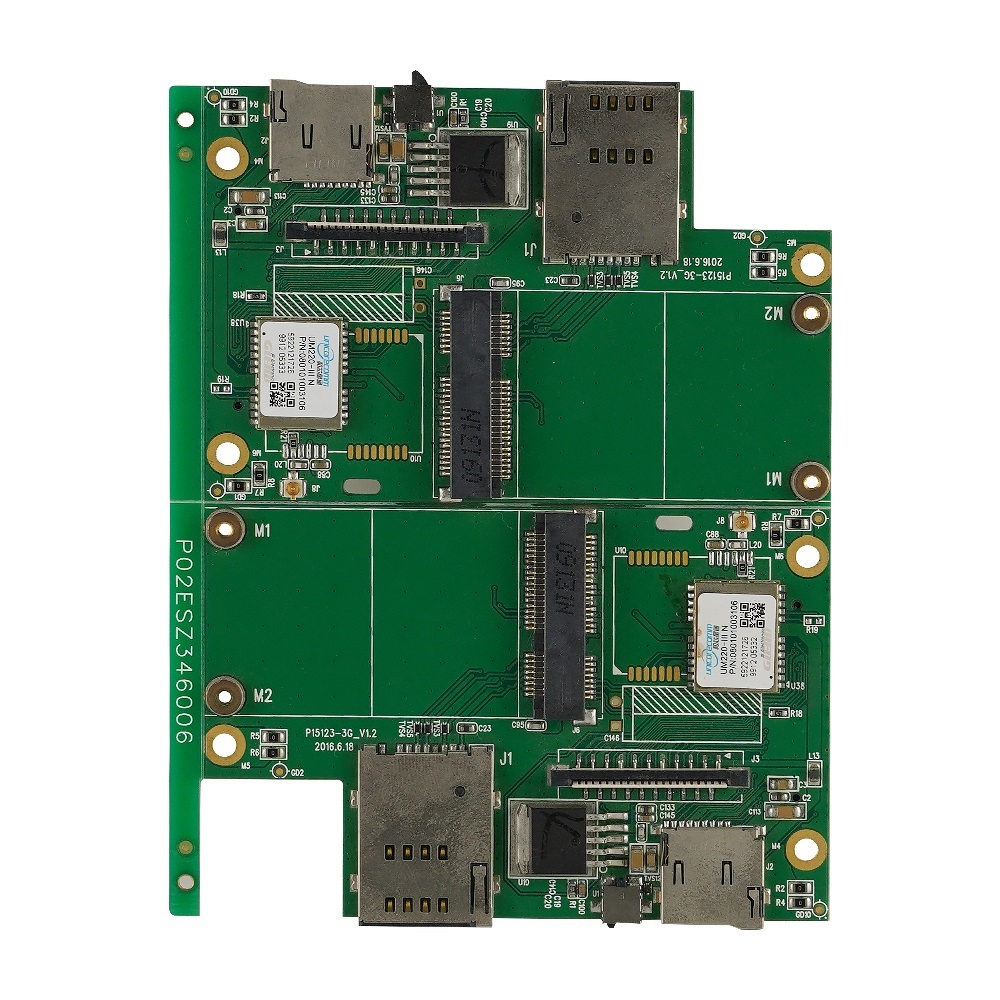

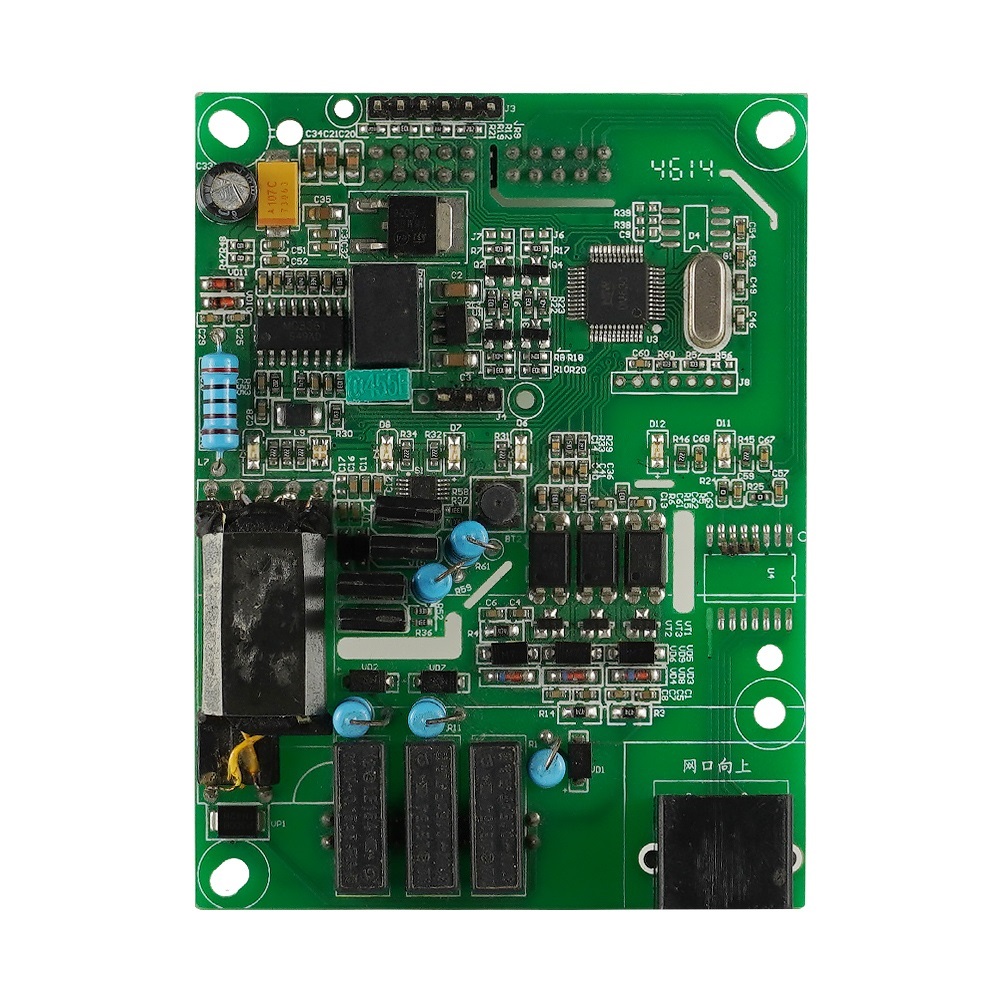

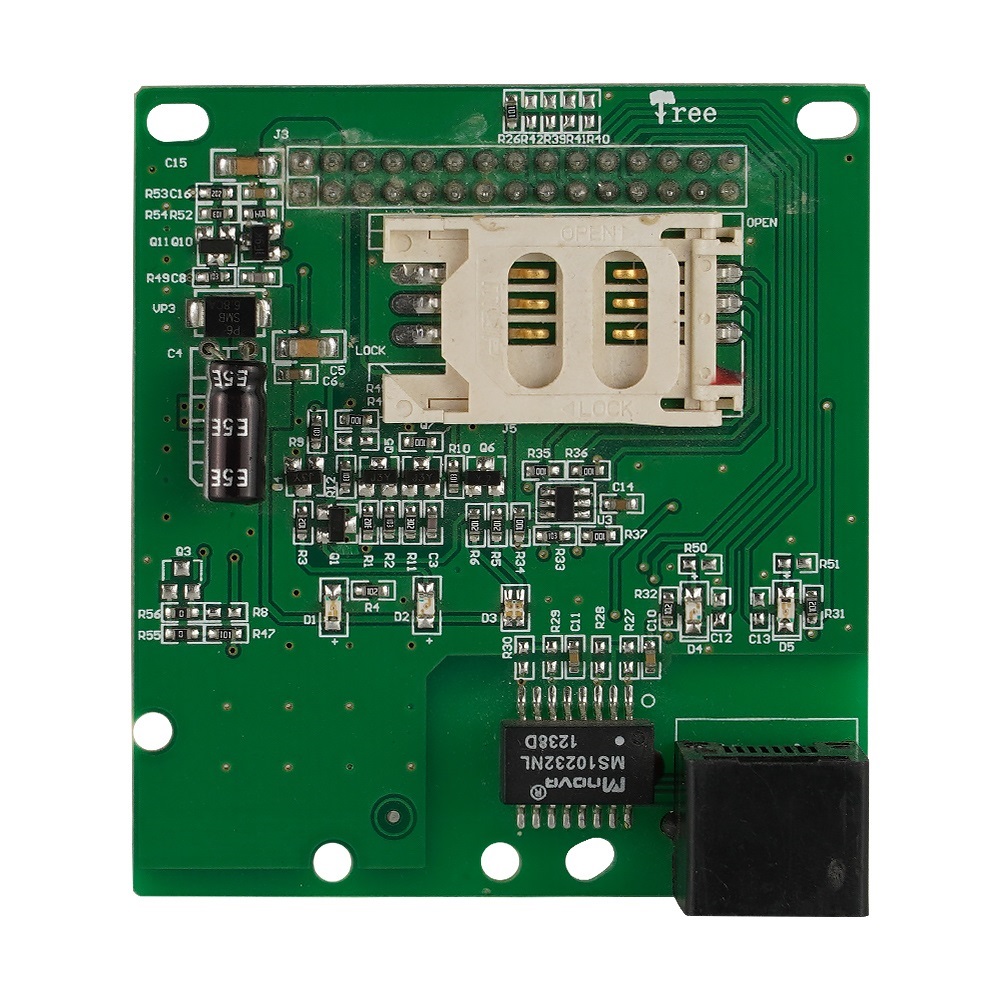

Ucreate offers quick turnkey PCB assembly service, which can meet your needs from prototype quantities as well as small-volume to big-volume production. We deal with the whole process including: Sourcing all the components, PCB manufacturing, PCB assembly, testing, and final shipment. We have our own PCB Assembly manufacturerto provide professional PCBA service and competitive price for our customers.
PCB Assembly Services
To deliver real value and convenience to our PCB fabrication clients, we expand our business to components sourcing and turnkey PCB assembly services ranging from the prototype, low-to-middle volume to high volume up to 1 million pcs. We can mount components on circuit boards using surface mount technology (SMT),through-hole technology (THT), and manual insertion:
- High-quality assembly services with short lead times
- No minimum order
- No additional charge for stencils
- Free DFM Check
- 100% AOI test and X-Ray test for BGAs package
- Function tests & IC programming based on custom requirements
All boards are produced according to IPC-6012 standards and inspected according to IPC-A-600 in the latest version. Our products are widely applied in communications, industrial control, power electronics, medical equipment, security electronics, consumer electronics, LED, etc. More than 90 percent of them were exported to Europe, North America, South America.
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2013,sell to North America(25.00%),Eastern Europe(15.00%),Western Europe(15.00%),Southern Europe(10.00%),Southeast Asia(8.00%),South America(5.00%),Oceania(5.00%),South Asia(5.00%),Domestic Market(5.00%),Eastern Asia(3.00%),Mid East(2.00%),Central America(2.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
PCB,PCBA,Components
4. Why should you buy from us not from other suppliers?
Established in 2001, Ucreate is a highly professional and experienced PCB and PCB Assembly Manufacturer who can offer one-stop service from PCB designing, manufacturing to PCB assembling, testing and housing.
5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,DDP,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD,EUR,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Cash;Ucreate has been established in 2004, being always attention to fabricating the printed circuit boards (PCB). Through over 10years, we have developed into such a well-known PCB manufacturer in the south of China, with more than 800 of employees.
